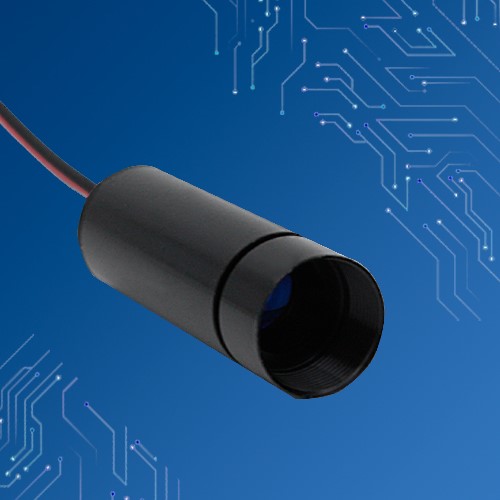

ULL-Series Line Laser modules are fully self-contained with integrated laser driver circuit, surface polished glass aspherical lens optics, and laser diode. Unique properties include a compact anodized aluminum body, fine adjustable line laser, clean beam, low divergence, high boresight accuracy and industrial strength. Highly recommended for OEM applications.
| Features | Applications |
|---|---|
| Thin Straight Line | Alignment |
| Adjustable Focus | Scanning |
| High Stability | Measurement |
| Part Number | Laser power | Wavelength | Lens type | Laser class | Features |
|---|---|---|---|---|---|
| ULL5-0.4G-635-** | 0.4 mW | 635 nm | Glass | Class 1 (IEC) | Gaussian Line |
| ULL5-1G-635-** | 1 mW | 635 nm | Glass | Class II | Gaussian Line |
| ULL5-3.5G-635-** | 3.5 mW | 635 nm | Glass | Depends on Fan Angle | Gaussian Line |
| ULL5-0.4G-650-** | 0.4 mW | 650 nm | Glass | Class 1(IEC) | Gaussian Line |
| ULL5-1G-650-** | 1 mW | 650 nm | Glass | Class II | Gaussian Line |
| ULL5-3.5G-650-** | 3.5 mW | 650 nm | Glass | Depends on Fan Angle | Gaussian Line |
| ULL5-0.4G-670-** | 0.4 mW | 670 nm | Glass | Class 1 (IEC) | Gaussian Line |
| ULL5-1G-670-** | 1 mW | 670 nm | Glass | Class II | Gaussian Line |
| ULL5-3.5G-670-** | 3.5 mW | 670 nm | Glass | Depends on Fan Angle | Gaussian Line |
